How Is a Multistage Deep Well Diving Electric Pump Sized?

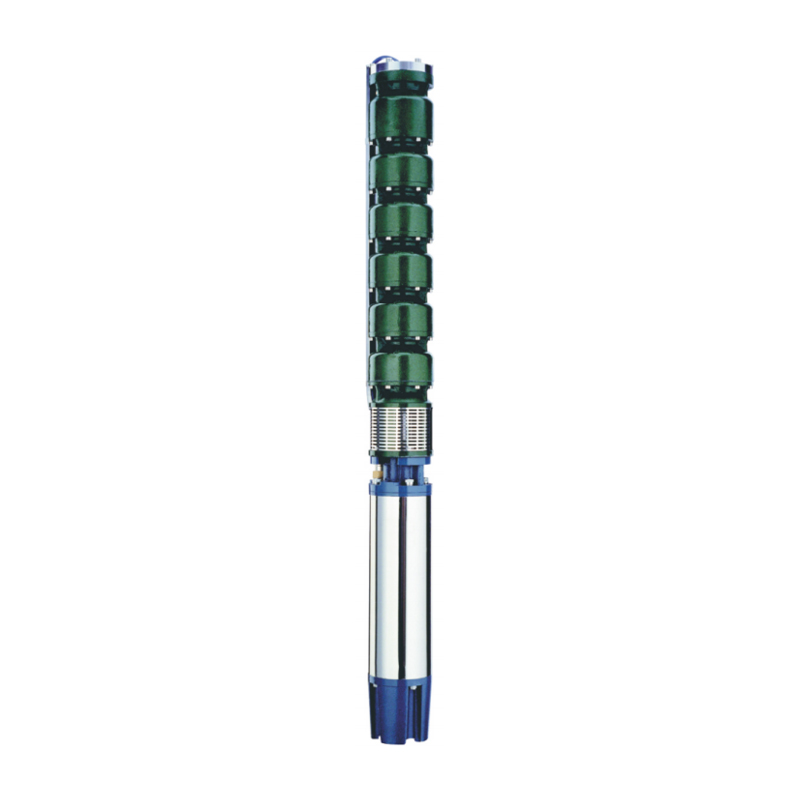

A single impeller can only add a limited amount of pressure to the water passing through it. Lifting water from a deep well to the surface, or to an elevated tank, takes more pressure than one impeller can supply, which is why a Multistage Deep Well Diving Electric Pump stacks several impellers in series inside one slim housing.

How Stages Add Up

Each stage takes the water leaving the previous one and raises its pressure a further step, so total head grows with the number of stages while flow rate stays close to what a single stage would deliver. A Multistage Deep Well Diving Electric Pump with more stages therefore reaches a higher head at a similar flow, but it also needs a longer body and a motor sized to drive every stage. This is why stage count is one of the numbers specified on a pump order, and why two pumps of similar flow rating can differ widely in the depth they can serve.

Dynamic Water Level Is the Number That Counts

Well depth alone does not tell a buyer how much head a pump must produce. Water level inside a well drops while pumping, and the head requirement combines the lift from that lowered level to the surface, friction loss in the delivery pipe, and any pressure needed at the discharge point. A Multistage Deep Well Diving Electric Pump selected on static water level or total well depth can end up undersized once drawdown and pipe losses are included. Project buyers usually get better results by requesting the well's pumping test data and sizing against the dynamic level rather than the figure quoted when the well was drilled.

Well Bore Diameter Limits the Pump Diameter

A submersible pump has to fit inside the well casing with clearance for the cable and delivery pipe. In narrow bores, motor and stage diameters are restricted, so reaching a required head means adding more stages along a longer, slimmer assembly rather than using wider impellers. A Multistage Deep Well Diving Electric Pump for a small-diameter borehole is therefore often a long unit with many stages, and buyers confirming compatibility check casing inner diameter and installation depth together instead of treating them as separate questions.

Sand, Minerals, and Wear in the Stages

Water drawn from deep sources can carry fine sand and dissolved minerals that wear impellers and diffusers over time, and some wells produce slightly acidic or saline water. Corrosion-resistant construction helps the stage components keep their dimensions and surface finish, which in turn keeps hydraulic performance stable. Buyers working with a Multistage Deep Well Diving Electric Pump on wells known for sand content generally ask about stage materials and whether the pump's protection features cover the conditions they expect, since wear in a multistage unit affects every stage in the stack.

Irrigation Duty Versus Municipal Duty

Agricultural irrigation tends to run pumps seasonally and in long blocks, while municipal supply often runs for hours of each day. The two duty patterns weigh efficiency differently: a farm that pumps a few months a year may accept a lower-efficiency unit to reduce purchase cost, while a municipal operator running the pump of the year gives energy consumption more weight. A Multistage Deep Well Diving Electric Pump is offered across a range of stage counts and power ratings so the same basic design can serve either pattern, with stage count and motor rating adjusted to the duty point.

Protection Against Overload

Automatic overload protection cuts power when current or temperature climbs beyond safe limits, which can happen if the pump is partly blocked, if supply voltage falls, or if the unit runs with insufficient submergence. For installations in remote locations where a failed pump may not be noticed quickly, this protection limits damage to the motor and keeps repair scope smaller than a burned winding would.

What Buyers Typically Compare

For distributors, drilling contractors, and water project buyers sourcing this category, useful comparison points include stage count against the dynamic head requirement, pump outer diameter against casing size, stage and shaft materials for the expected water chemistry, and the protection features fitted as standard. OUMAN Mechanical & Electrical Co., Ltd., based in Daxi Town, Wenling City, Zhejiang, manufactures its Multistage Deep Well Diving Electric Pump range together with stainless steel multistage centrifugal pumps, submersible pumps, and control cabinets, allowing a deep well project to source pump and control equipment from the same supplier.
